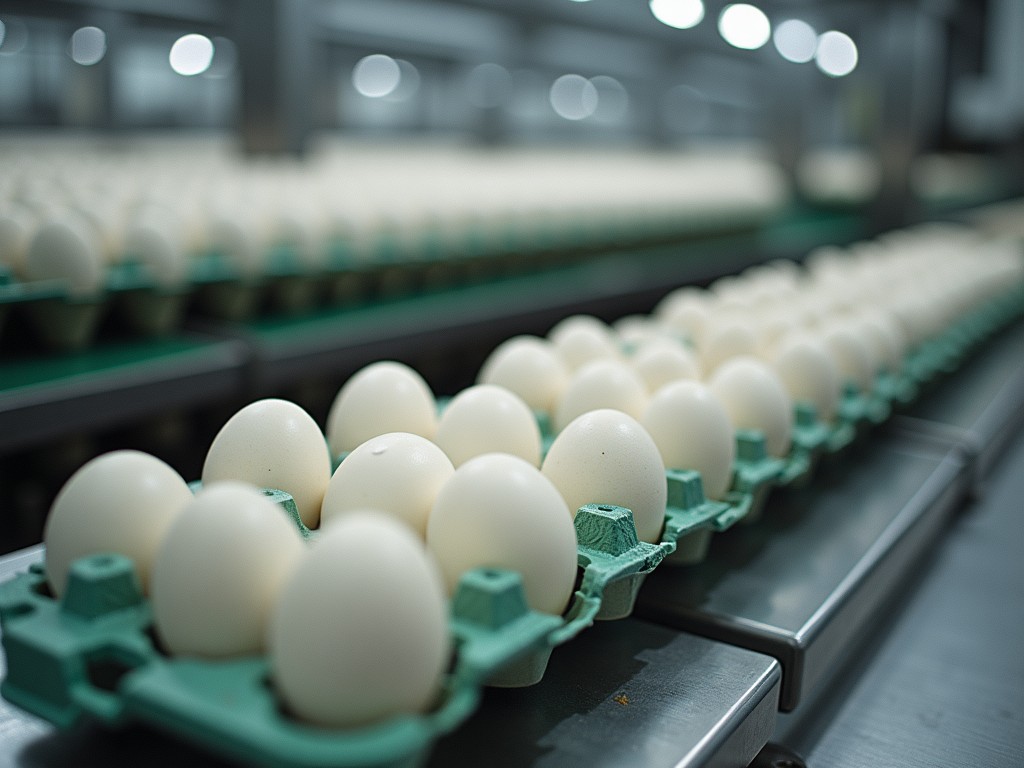

OEM Egg Packaging Line for Commercial Layer Farm

This production line integrates egg collection, inline grading, gentle transfer, and case or carton packaging specifically designed for high‑volume layer operations. Each module is engineered to maintain egg integrity while achieving throughput rates that match modern barn output.

System Architecture

The line consists of four primary subsystems: a conveyor‑based collection system that receives eggs directly from nest belts, a vision‑guided grading station that sorts by weight and shell quality, a low‑impact transfer mechanism that moves eggs to the packaging area, and a case‑forming and sealing unit that places eggs into consumer‑ready cartons or trays.

All subsystems are synchronized via a programmable logic controller (PLC) with adjustable speed ramps, allowing the line to ramp up or down in response to fluctuating laying rates without causing product damage.

Technical Specifications

Parameter	Typical Value	Unit	Notes
Throughput	30,000 – 90,000	eggs/hr	Depends on lane count and egg size
Lane Count	1 – 4	lanes	Configurable per barn layout
Conveyor Speed	0.2 – 1.0	m/s	Variable frequency drive control
Power Consumption	5 – 12	kW	Includes motors, controls, and lighting
Dimensions (L×W×H)	Customizable	mm	Based on lane count and package type

Material Construction

All product‑contact surfaces are fabricated from AISI 304 stainless steel with a surface finish of Ra ≤ 0.8 µm to facilitate cleaning and resist corrosion from cleaning agents. Frame components use hot‑dip galvanized steel or powder‑coated aluminum for structural rigidity while keeping weight manageable for installation.

Belts and rollers employ food‑grade polyurethane with a hardness of 85 ShA, selected for low egg‑slide friction and resistance to cracking under repeated cycling.

Customization Options

Lane count: 1 to 4 parallel lanes, each independently controllable
Package formats: 12‑egg cartons, 18‑egg trays, 30‑egg flats, or custom bulk bins
Integration interfaces: Ethernet/IP, Modbus TCP, or discrete I/O for barn management software
Optional in‑line UV sanitizing station for shell surface treatment
Adjustable case sealer for hot‑melt glue, tape, or interlocking flap designs

Quality Assurance & Testing

Before shipment, each line undergoes a functional run‑test at 110 % of rated speed to verify synchronization, torque limits, and sensor feedback. Sanitation validation includes a clean‑in‑place (CIP) cycle with alkaline and acidic solutions, followed by rinse water conductivity measurement to confirm residue removal below 10 µS/cm.

Traceability is built into the PLC logic, logging batch numbers, timestamps, and reject counts for each lane, enabling producers to meet auditing requirements for egg safety programs.

Applications in Commercial Layer Farms

Layer farms benefit from a packaging line that matches the continuous flow of eggs from automated nest belts, eliminating manual handling steps that increase the risk of micro‑cracks. By maintaining a consistent, low‑impact transfer speed, the line reduces breakage rates to under 0.2 % in field trials, directly improving saleable yield.

The modular design allows the line to be installed within existing barn layouts, utilizing overhead or floor‑mounted conveyors that avoid disrupting bird housing. Adjustable height and width settings enable integration with varying ceiling clearances and feed‑line configurations.

Frequently Asked Questions

Can the line be adapted to different egg sizes? Yes, the grading station uses interchangeable weight thresholds and the conveyor speed can be fine‑tuned to accommodate small, medium, or large eggs without mechanical change.

What information is required for a quotation? Required data include average daily egg production, desired package type, available floor space, and any existing automation protocols (e.g., Modbus addresses).

What materials are available for the frame? Standard options are hot‑dip galvanized steel, powder‑coated aluminum, or stainless steel 304 for corrosive environments.

How is quality inspected during production? Inline vision systems check for shell defects, while weight sensors reject out‑of‑spec eggs; all rejects are diverted to a separate collection bin.

What is the typical lead time? Lead times range from 10 to 16 weeks after final design approval, depending on lane count and custom features.
