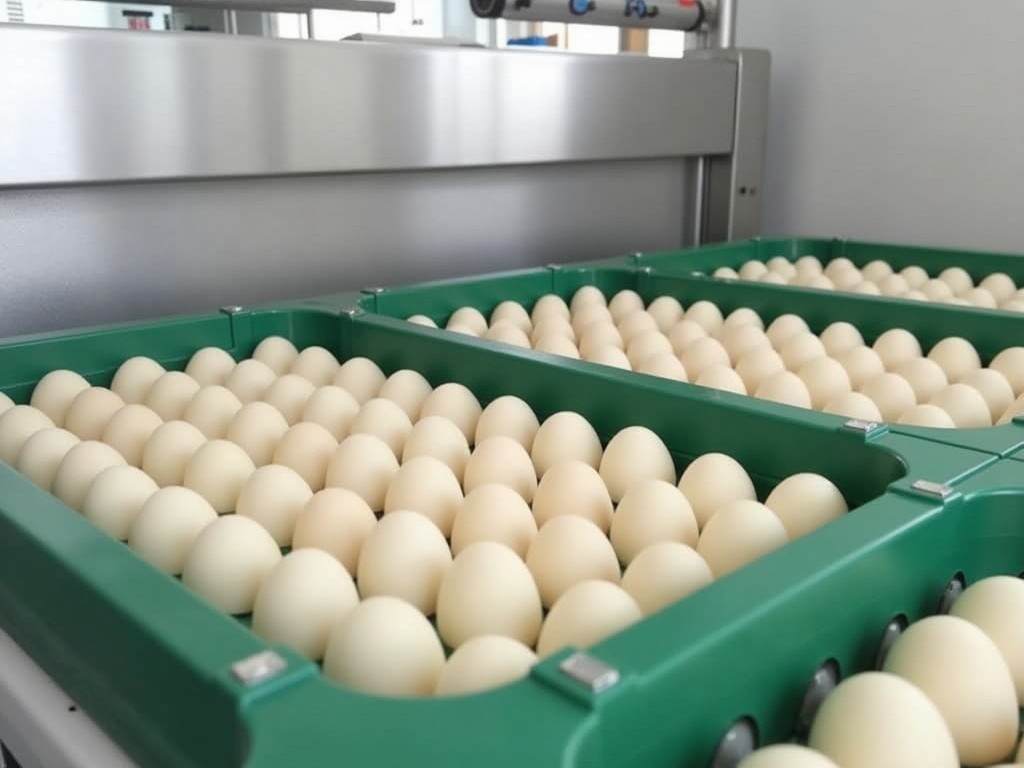

Factory Direct Egg Packing Line Accessory
Factory Direct Egg Packing Line Accessory
The accessory mounts onto existing egg packing conveyors to rotate and align eggs before they enter the carton loader. It operates at line speeds up to 300 eggs per minute while maintaining a grip force below 0.5 N to prevent shell damage.
Overview
Integrating a dedicated orientation module reduces reliance on manual adjustments and minimizes variation in egg placement. The unit uses a low‑inertia servo drive to achieve repeatable positioning within ±0.5 mm.
By keeping contact surfaces smooth and using food‑grade polymers, the accessory helps maintain line hygiene and supports compliance with FDA 21 CFR 174.5.
Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Compatible line speed | Up to 300 eggs/min | Adjustable via drive settings |
| Egg size range | 45 mm – 60 mm diameter | Covers USDA small to extra‑large |
| Actuation force | 0.2 N – 0.5 N | Measured at gripper tip |
| Positioning repeatability | ±0.5 mm | 3‑sigma over 10 000 cycles |
| Materials – frame | AISI 304 stainless steel | Food‑grade, corrosion‑resistant |
| Materials – grippers | FDA‑approved PTFE‑coated silicone | Low‑particle, non‑stick |
| Power supply | 24 V DC, 2 A | Optional 110 V AC adapter |
| Mounting interface | Standard 50 mm bolt pattern | Compatible with most conveyor frames |
Materials and Construction
The primary structure uses cold‑rolled AISI 304 stainless steel with a surface roughness of Ra 0.4 µm, facilitating clean‑in‑place (CIP) procedures. All fasteners are passivated to prevent galvanic corrosion when exposed to alkaline cleaning agents.
Gripper elements incorporate a dual‑layer design: an inner food‑grade silicone core (shore A 30) coated with a 15 µm PTFE layer. This combination yields a coefficient of friction below 0.15, enabling gentle release without residual adhesion.
- Laser‑cut tolerances held to ±0.1 mm for repeatable alignment.
- Sealed bearings (IP67) rated for 10 million revolutions.
- Quick‑release clamps allow tool‑free swap of gripper modules in under 30 seconds.
Design Features
A low‑inertia brushless servo motor drives a harmonic reducer, providing backlash under 2 arc‑minutes. This enables rapid start‑stop cycles without overshoot, critical for maintaining throughput on high‑speed lines.
Adjustable guide rails are mounted on micro‑metric screws, allowing width changes from 40 mm to 70 mm in 0.5 mm increments. Position feedback is supplied by a non‑contact Hall‑effect sensor with resolution of 0.01 mm.
The accessory includes an integrated blow‑off nozzle that delivers filtered air at 0.5 bar to remove debris before egg entry, reducing particle contamination risk.
Applications in Egg Processing
In-line orientation ensures that the blunt end of each egg faces upward, which improves sealing efficiency in downstream cartoners and reduces the likelihood of micro‑cracks during transfer.
By handling eggs with sub‑newton forces, the accessory supports operations that require extended shelf life, such as pasteurized liquid egg products where shell integrity directly impacts microbial safety.
Facilities running mixed‑size batches benefit from the adjustable gripper width, eliminating the need for mechanical changeovers between product runs.
Customization Options
The base model can be tailored to specific line layouts and hygiene requirements through several interchangeable subsystems.
- Alternative gripper materials: urethane (shore A 80) for higher abrasion resistance or stainless‑steel tines for ultra‑clean environments.
- Vision sensor integration: real‑time orientation verification with Ethernet/IP output.
- Extended mounting brackets: to accommodate non‑standard conveyor flange patterns.
- Optional cover guards: stainless‑steel, IP66 rated for wash‑down zones.
All customizations are subject to engineering review to ensure that dynamic balance and load limits remain within design specifications.
Quality Assurance and Testing
Each unit undergoes a three‑stage validation: dimensional inspection using a CMM (coordinate measuring machine) with uncertainty ≤ 2 µm, functional run‑test at 120 % of rated speed for 30 minutes, and a clean‑ability test per ASTM E2315.
Torque on all fasteners is verified to 80 % of proof load using calibrated ultrasonic torque sensors. Results are recorded in a traceable batch record linked to the unit’s serial number.
Before shipment, accessories are packaged in anti‑static, vent‑controlled crates with internal humidity indicators to prevent corrosion during transit.
Frequently Asked Questions
- Can the gripper width be adjusted after installation? Yes, the guide rails use lockable micrometer screws; adjustments can be made while the line is stopped, typically within two minutes.
- What information is required for a quotation? Line speed, egg size range, conveyor mounting pattern, and any environmental constraints (e.g., wash‑down temperature, chemical exposure).
- Are spare parts available? Critical components such as servos, grippers, and bearings are stocked and can be shipped within 5 business days.
- How is the accessory cleaned? It is designed for CIP with alkaline detergents up to 80 °C and can withstand SIP (steam‑in‑place) at 121 °C for 20 minutes.
Get a Quote
To discuss how this accessory can be integrated into your egg packing line, provide your line specifications and we will return a detailed technical proposal.
