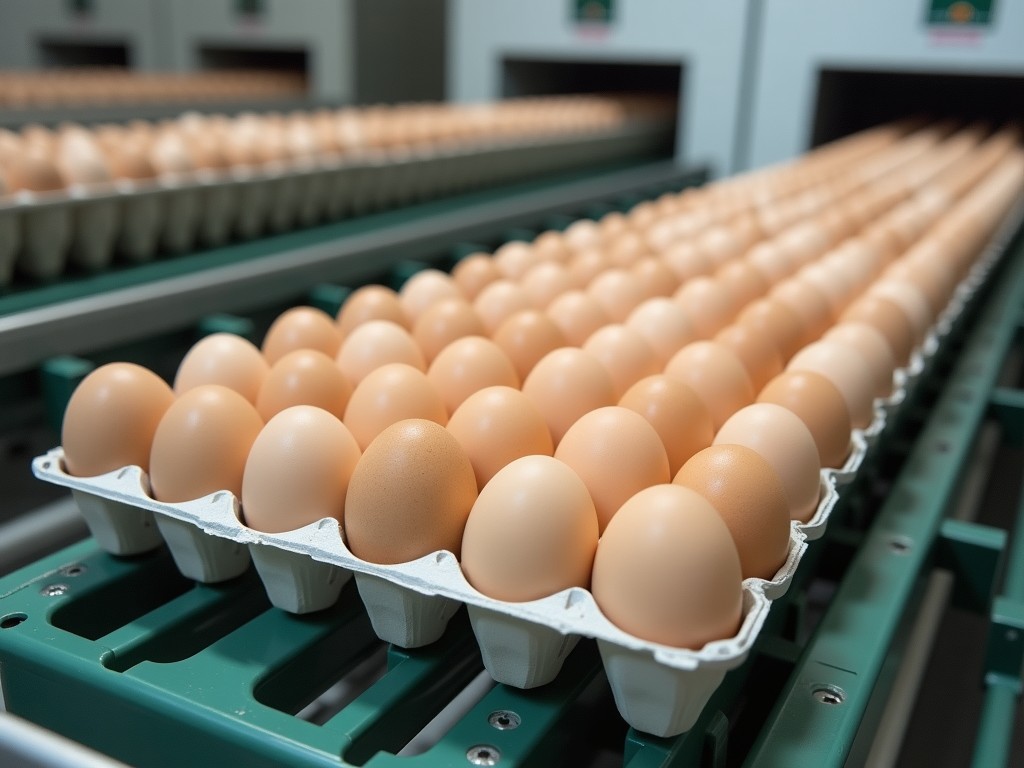

China Layer Farm Egg Packaging Machine

Automated egg packaging in large-scale layer farms represents a shift from manual-intensive sorting to high-throughput industrial processing. These systems are designed to handle the continuous output from de-layering units, ensuring that eggs are transitioned from collection to final packaging with minimal stress. By integrating mechanical transport with precision weighing sensors, the machinery reduces the breakage rates associated with manual handling while maintaining a consistent production speed that can exceed 5,000 eggs per hour depending on the configuration.

The engineering behind these machines focuses on the synchronization of conveyor belts and the tray-loading mechanism. High-speed optical sensors detect cracks or irregularities in real-time, allowing the system to divert defective units into a secondary rejection line before they reach the final packaging stage.

Technical Specifications and Engineering Features

The core of the system relies on a PLC (Programmable Logic Controller) architecture that coordinates the timing of the pneumatic-driven tray actuators. This allows for precise adjustments in line speed to accommodate different egg sizes, from small to jumbo. The frame is typically constructed from food-grade stainless steel to meet stringent hygiene standards and to facilitate high-pressure-washdown cleaning.

Precision weight distribution is achieved through high-sensitivity load cells with an accuracy of +/- 2 grams. This ensures that every carton or tray meets regulatory weight requirements, which is critical for retail-level distribution. Variable frequency drives control the main motors to allow for smooth acceleration and deceleration, preventing sudden shocks that could cause shell fractures.

Key Components and Material Selection

Material selection is dictated by the operational environment of a poultry farm. All surfaces in contact with the eggs are made of high-density polyethylene (HDPE) or stainless steel to prevent cross-contamination and corrosion.

• Control System: Industrial-grade Siemens or Allen-Bradley PLC for reliable diagnostic feedback and interface.
• Conveyor System: Food-grade PVC belts or modular plastic links for hygienic egg transport.
• Pneumatics: High-cycle-count cylinders for rapid tray placement and sealing mechanisms.
• Sensors: Infrared and ultrasonic sensors for level detection and speed monitoring.

Packaging Options and Capacity

The machine is modular, allowing operators to select various packaging formats based on the target market. The choice of material significantly affects the mechanical requirements and the achievable speed of the line.

Application Logic and Integration

Integration into an existing layer farm requires a seamless flow from the de-layering machine. The packaging machine is designed to receive eggs from a grading belt, where they are already sorted by weight and size. This sequence prevents the accumulation of eggs, which is the primary cause of shell crushing in automated systems.

For farms focusing on high-volume export, the machine can be coupled with automatic palletizers and shrink-wrap units. This creates a fully automated loop from the collection point to the shipping pallet. The technical flexibility allows farms to switch between different product configurations with minimal downtime.

Quality Control and Manufacturing Standards

Quality assurance involves rigorous testing of the mechanical actuators and the calibration of the electronic sensors. Each unit undergoes a stress test to ensure that the conveyor systems can handle 24/7 operation without thermal overheating.

Manufacturing follows ISO 9001 standards, ensuring that every component is traceable and meets engineering specifications. We prioritize the use of standardized parts for motors and bearings to ensure long-term maintenance availability for the end user.
