Buy Egg Farm Packaging Machine Suppliers

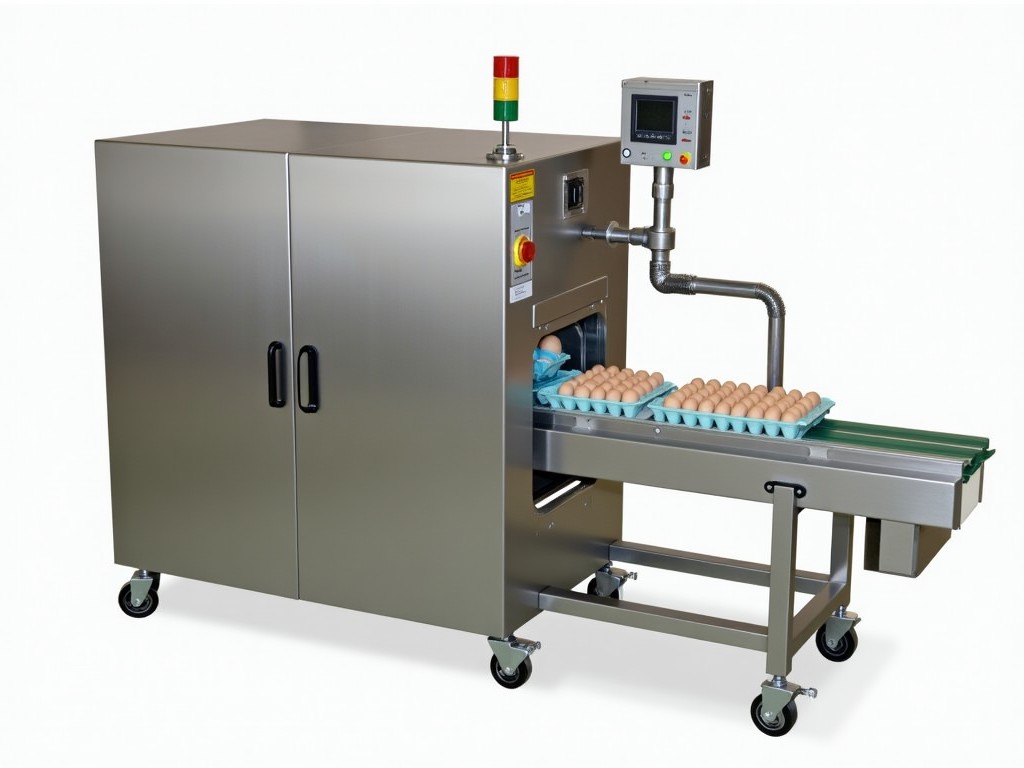

Egg Farm Packaging Machine – Overview for Buyers
Egg farm packaging machines automate the transfer of washed, graded eggs into protective cartons, trays, or bulk containers while maintaining product integrity. They integrate gentle handling mechanisms with high‑speed indexing to meet the throughput demands of modern layer houses.
Core Functional Principles
The machine receives eggs from a conveyor or elevator, aligns them tip‑up using rotary orienters, and deposits each egg into a formed pocket of the packaging format. Synchronized servo drives control the pick‑and‑place motion, limiting impact forces to under 0.2 N to prevent shell cracking.
After filling, a sealing or closing unit applies heat‑seal, adhesive, or snap‑fit closures depending on the carton material. A downstream discharge conveyor transfers the packed units to palletizers or case sealers at a rate matched to the upstream packing speed.
Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Maximum throughput | Up to 300 eggs /min per lane | Scalable with additional lanes |
| Power consumption | 2.5 kW (motor) + 0.8 kW (heating) | 3‑phase 400 V, 50/60 Hz | Machine footprint | 2.2 m (L) × 1.0 m (W) × 1.8 m (H) | Includes safety guarding |
| Compatible packaging | Pulp cartons (6‑12 egg), PET trays, foam trays | Changeover < 15 min |
| Control system | PLC with HMI touchscreen | Recipe storage for 20 formats |
Material Construction & Hygiene
Primary frame and contact surfaces are fabricated from AISI 304 stainless steel, with optional upgrade to 316L for higher corrosion resistance in humid environments. All belts, rollers, and guides use FDA‑compliant polyurethane or silicone, allowing routine CIP (clean‑in‑place) cycles at 80 °C without degradation.
Sealed bearings and IP65‑rated motor housings prevent ingress of dust and moisture, supporting continuous operation in egg‑processing rooms where ambient humidity can exceed 80 % RH.
Customization Options
- Number of lanes (1‑4) to match farm output
- Adjustable pocket depth for varying egg sizes (small to jumbo)
- Optional UV‑sterilization module positioned post‑fill
- Integration ports for upstream grading conveyors and downstream palletizers
- Choice of closing mechanism: heat‑seal, hot‑glue, or snap‑lock
Applications in Egg Farming
Layer farms producing 10 000‑500 000 eggs per day require packaging that keeps eggs stationary during transport to retail or breaking facilities. The machine’s low‑impact transfer reduces micro‑cracks, which directly improves grade‑A yield and lowers waste.
Because the equipment handles eggs immediately after washing and drying, it fits naturally into the line between the dryer and the carton loader, eliminating the need for intermediate accumulation buffers that increase floor space and contamination risk.
Quality Assurance & Testing
Each unit undergoes a factory acceptance test (FAT) where 10 000 test eggs are run through at rated speed, and crack incidence is measured using candling equipment. Acceptance criteria specify < 0.1 % visible damage.
Following FAT, a site acceptance test (SAT) validates synchronization with the customer’s existing conveyors and verifies that cleaning cycles achieve the required microbial log reduction (< 1 CFU / cm²) on contact surfaces.
Supplier Selection Considerations
Evaluate suppliers based on documented experience with egg‑specific installations, availability of spare parts for wear items such as orienter fingers and sealing bars, and the ability to provide on‑site commissioning within a 4‑week window after delivery.
Request references that include performance data on throughput consistency over a 6‑month period and after‑sales response times for technical queries.
Inquiry & Next Steps
To obtain a quotation tailored to your farm’s egg volume, preferred packaging format, and facility layout, please provide the following details: average daily egg count, current line speed, desired carton size, and any space constraints. Our engineering team will respond with a preliminary layout and cost estimate within two business days.
