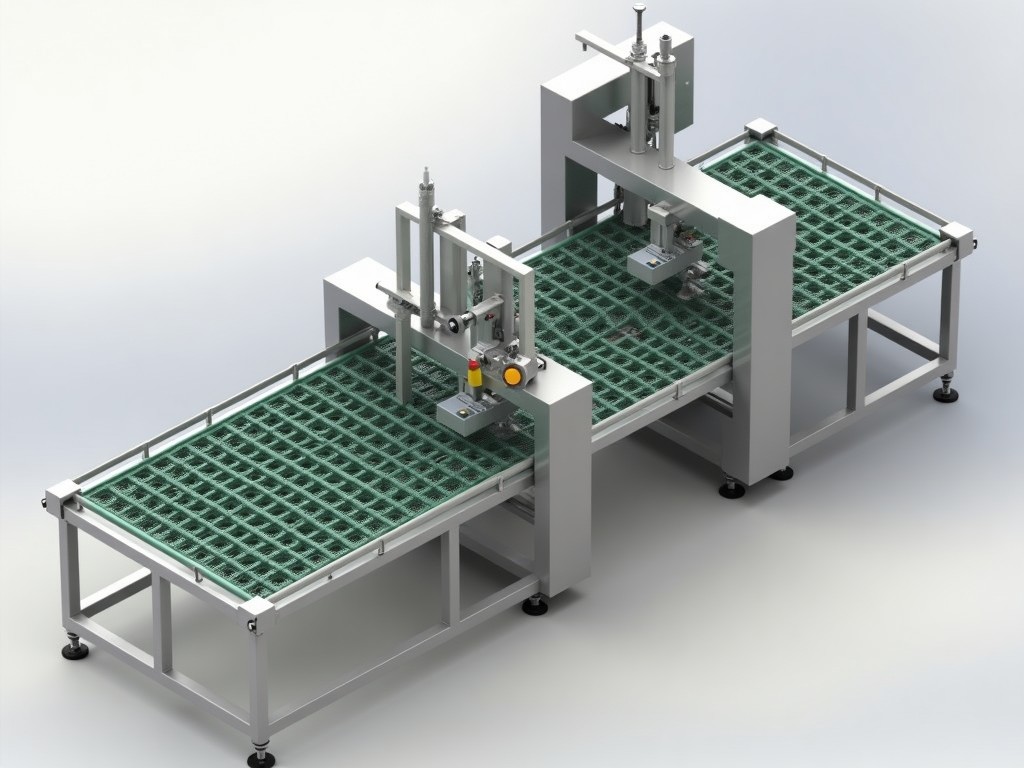

Buy Egg Crate Packing Machine For Layer Farm

Egg Crate Packing Machine for Layer Farms

Layer farms produce large volumes of eggs that must be collected, sorted, and placed into transport crates for distribution.

Manual packing is labor‑intensive and increases the risk of shell damage, which directly affects product quality and profitability.

The packing machine receives eggs from a conveyor or collection system, orients them according to crate layout, and places each egg into its designated cell using a gentle pneumatic or mechanical placement head.

Cycle time is controlled by a programmable logic controller (PLC) that synchronizes feeder, orienter, and placer modules.

Changeover between different crate sizes is achieved by adjusting mechanical guides and updating the PLC recipe, typically requiring less than five minutes.

By automating the placement process, farms can achieve consistent packing rates while reducing operator fatigue.

The controlled placement force minimizes micro‑cracks, preserving egg integrity during storage and transport.

Technical Specifications

Parameter	Typical Value	Notes
Crate Compatibility (mm)	250‑350 (L) × 150‑250 (W) × 80‑120 (H)	Customizable to specific crate dimensions
Throughput (crates/min)	80‑150	Depends on crate size and egg orientation
Power Supply (kW)	3‑5	Three‑phase, 380‑480 V
Air Pressure (bar)	0.5‑0.8	Required only for pneumatic placement heads
Control System	PLC with HMI touchscreen	Recipe storage for multiple crate types
Footprint (m)	1.2 × 0.8 × 1.5 (L × W × H)	Overall machine dimensions
Weight (kg)	250‑350	Depending on selected options

Applications

High‑volume layer farms benefit from continuous feeding of eggs directly from collection belts to packing stations.
Uniform crate filling reduces handling time and improves stack stability during palletization.
Automated placement lowers the incidence of cracked shells, preserving grade‑A egg yield.
Integration with existing egg washing and drying lines creates a seamless, labor‑reduced workflow.

Customization Options

Adjustable mechanical guides to accommodate crate lengths from 250 mm to 350 mm and widths from 150 mm to 250 mm.
Choice between pneumatic placement heads (for delicate handling) or servo‑driven mechanical placers (for higher speed).
Optional vision‑guided orientation system to detect egg position and correct tilt before placement.
Stainless steel 304 or 316 food‑grade construction for corrosion resistance and easy cleaning.
Integrated data logging module that records cycle counts, fault codes, and production rates for traceability.

Quality Assurance

All food‑contact surfaces are fabricated from stainless steel 304 or 316, meeting ISO 22000 hygiene standards.

Welds are inspected using dye‑penetrant testing to ensure absence of crevices that could harbor contaminants.

The machine carries an IP54 rating for protection against dust and moisture spray, suitable for typical farm environments.

Prior to shipment, each unit undergoes a factory acceptance test that validates throughput, placement accuracy, and safety interlock functions.

Frequently Asked Questions

Can dimensions be customized?

Yes, crate size guides and placement head stroke can be adjusted to match specific crate layouts; changes are typically completed within a few minutes.
What information is required before quotation?

Required details include average egg flow rate (eggs per hour), crate dimensions, available power supply, and any required integration with existing conveyors.
What materials are available for food contact?

Stainless steel 304 is standard; 316L is offered for environments with higher chloride exposure or aggressive cleaning agents.
How is the machine protected during shipment?

Units are secured on a steel pallet, wrapped in corrosion‑inhibiting film, and placed inside a wooden crate with foam edge protection.
What is the typical production lead time?

Lead time ranges from 6 to 8 weeks after receipt of technical specifications and deposit, depending on selected options.
