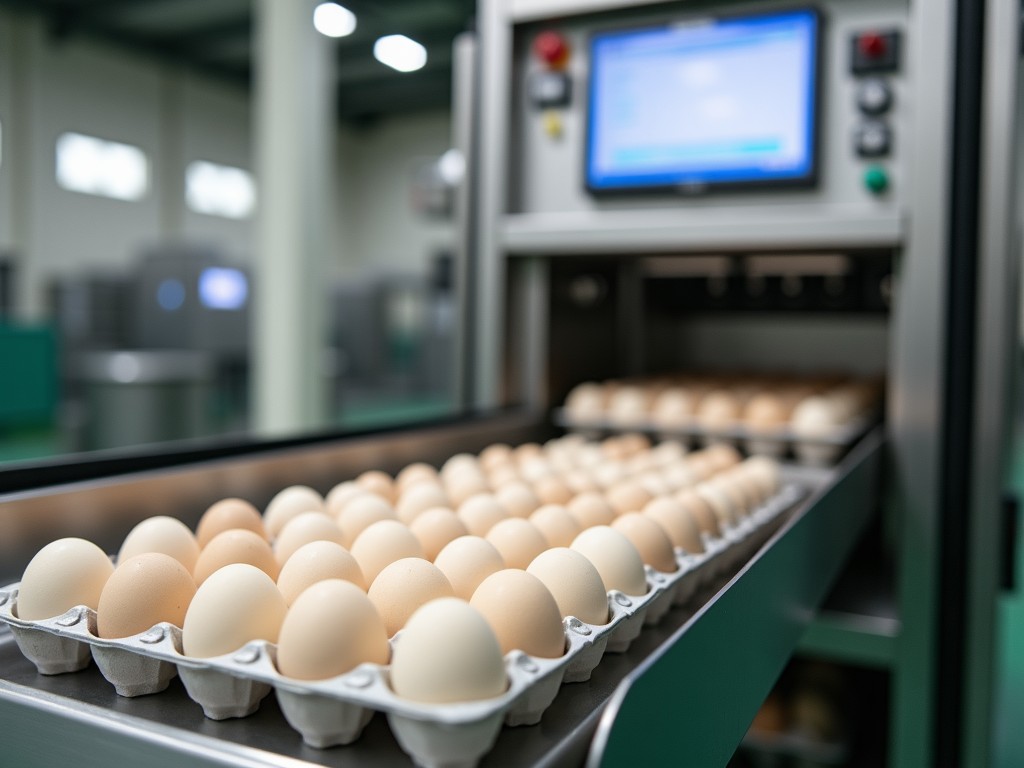

Bulk Egg Packing Machine For 50000 Layers
Bulk Egg Packing Machine for 50,000 Layers
Overview
A bulk egg packing machine designed for farms with approximately 50,000 laying hens handles the high‑volume output typical of such operations. The system receives eggs directly from collection conveyors, orients them, and places them into trays or cartons at a rate matched to the farm’s laying cycle. By integrating weighing, crack detection, and stacking functions, the machine reduces manual handling and improves pack consistency.
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Maximum throughput | Up to 180,000 eggs per hour (≈30,000 trays/h) |
| Egg size range | 43 mm to 63 mm diameter (USDA Small to Jumbo) |
| Power supply | 380 V ± 10 %, 3‑phase, 50/60 Hz, 7.5 kW |
| Machine footprint | ≈4.2 m (L) × 1.8 m (W) × 2.1 m (H) |
| Control system | PLC with HMI touchscreen, optional SCADA integration |
Key Features
- Gentle egg handling with soft‑touch grips to minimize shell damage
- Integrated weight sorting (±1 g) for uniform carton filling
- Automatic crack detection using vision sensors, rejecting defective eggs before packing
- Quick‑change tooling for tray sizes ranging from 6‑egg to 30‑egg configurations
- Stainless‑steel (AISI 304) contact surfaces for easy cleaning and corrosion resistance
Applications in Large‑Scale Egg Production
Operations with 50,000 layers typically produce over 150,000 eggs per day, requiring a packing line that can keep pace with laying cycles and reduce bottlenecks at the collection point. The machine’s high throughput and modular design allow it to be positioned after the washing and drying stage, directly feeding into palletizers or carton sealers. By automating orientation and counting, the system lowers labor dependency and improves traceability for downstream processing or retail packaging.
Customization Options
- Adjustable lane count (2‑6 lanes) to match facility layout and desired output
- Optional integration with barcode printers for carton labeling
- Choice of pneumatic or servo‑driven actuators for precise positioning
- Extended warranty packages covering wear parts for up to 24 months
- Remote diagnostics module for real‑time performance monitoring
Quality Assurance Approach
Each unit undergoes factory acceptance testing that includes a 24‑hour run‑at‑rated‑capacity test, vibration analysis, and sanitation verification. Critical components such as grippers and vision modules are sourced from suppliers with documented MTBF data, allowing predictive maintenance planning. Documentation packages provide material certificates, electrical schematics, and calibration records to support compliance with food‑processing standards.
Frequently Asked Questions
Can the machine be adapted to different egg sizes?
Yes, the gripping mechanisms and tray changeover parts are adjustable within the 43 mm to 63 mm diameter range, and size‑specific tooling can be supplied upon request.
What information is needed for a quotation?
Typical inputs include daily egg output, desired packing format (tray or carton), facility power specifications, and any required upstream or downstream equipment interfaces.
How are wear parts managed?
Wear‑prone components such as grippers and belts are designed for quick replacement, and spare part kits are available with defined life‑cycle estimates based on operating hours.
Next Steps
To discuss how this packing solution can be integrated into your 50,000‑layer operation, please contact our technical team for a detailed review of your layout and capacity requirements.
