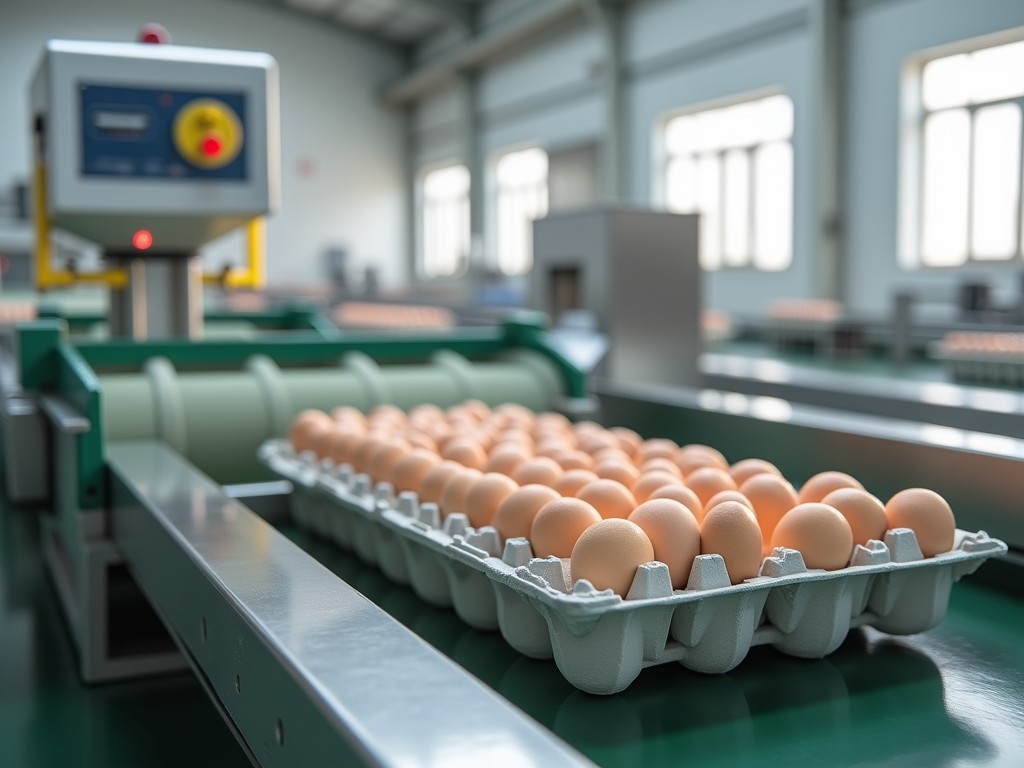

OEM Automatic Egg Loading Machine
This equipment transfers trays of eggs from a pallet or conveyor into processing lines with minimal manual handling. It operates continuously at a defined rate, reducing labor intensity and the risk of product damage during loading.
Working Principle
A synchronized gantry lifts a full tray, aligns it with the inlet of the downstream line, and deposits the tray onto a powered roller or belt. Sensors verify tray presence and position before release, preventing misfeeds. The cycle repeats based on a programmable timer or external trigger from the line controller.
Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Maximum throughput | Up to 120 trays/min | Depends on tray size and line speed |
| Tray dimensions accommodated | 300 × 400 mm to 450 × 600 mm | Custom adapters available |
| Drive power | 1.5 kW servo motor | Variable speed control |
| Control voltage | 24 VDC | PLC‑compatible |
| Footprint (L × W × H) | 1800 × 900 × 1500 mm | Includes safety guarding |
| Construction material | Stainless steel 304 frame, food‑grade UHMW‑PE contact surfaces | Corrosion resistant, easy to clean |
Key Features
- Adjustable tray gripper pressure to accommodate varying shell strength
- Quick‑change tooling for different tray formats without line stoppage
- Integrated safety light curtains meeting EN ISO 13855
- Energy‑recovery braking reduces peak power draw during deceleration
- Modular electrical enclosure allows remote mounting for wash‑down areas
Applications
In high‑volume egg breaking operations, the loader eliminates the manual lifting of heavy trays, which can exceed 15 kg each. By automating this transfer, the line achieves a more consistent feed rate, reducing variability in downstream cracking or washing equipment.
For farms that perform on‑site grading and packing, the machine accommodates reusable plastic trays as well as disposable pulp trays, allowing a single unit to serve multiple packaging lines without retooling.
Customization Options
- Variable tray indexing speed from 30 to 150 trays/min
- Alternative gripper designs: vacuum suction for fragile shells or mechanical claws for rugged trays
- Extended conveyor lengths to bridge greater distances between palletizer and processing line
- Stainless steel 316 construction for environments with aggressive cleaning agents
- Integration kit for existing PLC platforms including EtherCAT, Profibus, or Modbus TCP
Quality Control
Each unit undergoes functional testing at rated load for a minimum of 30 minutes, verifying timing accuracy, gripper repeatability, and safety circuit response. Dimensional inspections of critical components are performed using calibrated CMMs to ensure tolerances within ±0.2 mm.
Material traceability is maintained for all stainless steel and polymer parts, with mill certificates available upon request. Final cleaning follows a validated CIP protocol, and surface roughness is measured to confirm compliance with food‑contact standards.
Frequently Asked Questions
Can the machine handle both inline and offline tray stacks?
Yes, the loader can be configured with a stacking magazine for offline operation or a direct pick‑from‑conveyor setup for inline feeding.
What information is required before quotation?
Required details include tray dimensions, weight, desired throughput, line speed, available power supply, and any environmental constraints such as wash‑down temperature.
How are export shipments protected?
Units are packed in corrosion‑inhibiting wrap, placed on a steel pallet, and secured with straps. Vibration‑isolating brackets are added for long‑haul transit.
Contact for Inquiry
To discuss your specific loading requirements, share your line layout and tray specifications. Our engineering team will respond with a feasibility assessment and preliminary configuration.
