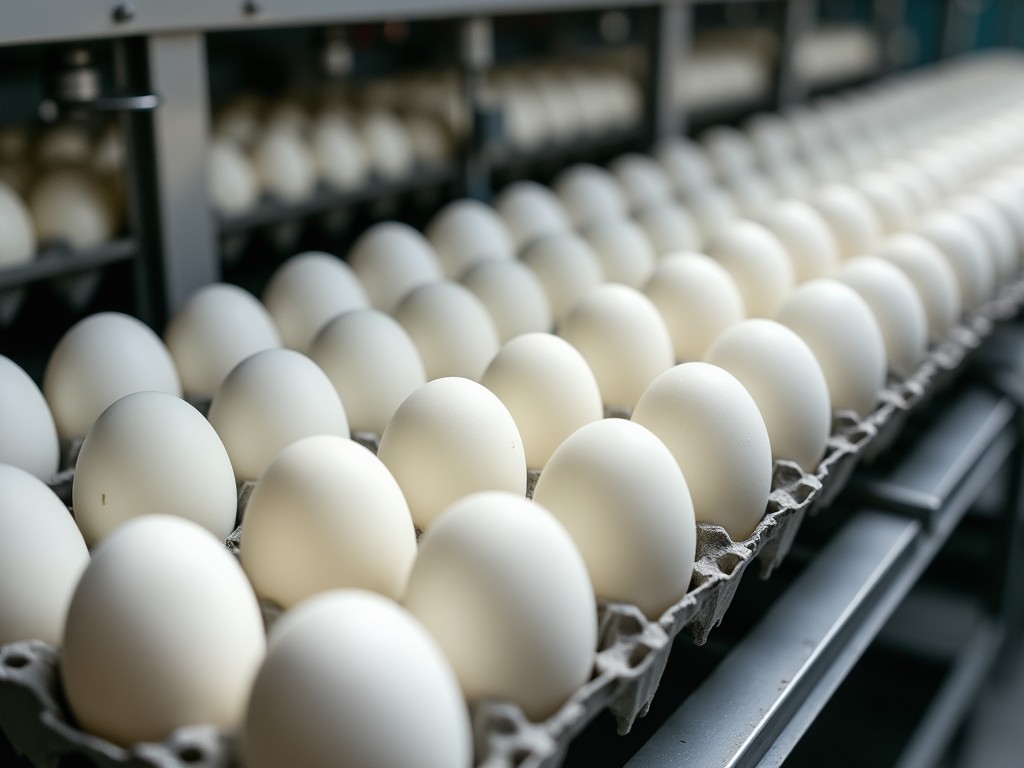

Automatic Egg In-Feed System

An automatic egg in-feed system is a mechanized module that receives bulk‑supply eggs and delivers them individually to downstream processing equipment at a preset rate and orientation. By replacing manual loading, it reduces labor variability, minimizes shell damage, and maintains a steady flow for washing, cracking, or packaging lines.

Operating Principle

The unit typically combines a vibratory bowl or belt feeder with a singulation mechanism that separates eggs one by one. Sensors detect the presence of each egg and trigger a timing belt or paddle to release it onto a synchronized conveyor that matches the line speed.

Adjustable speed controls allow the feed rate to be tuned from low‑volume specialty runs to high‑capacity production, while soft‑touch belts or silicone‑coated guides prevent impact forces that could cause micro‑cracks.

Design Features

Construction from 304 stainless steel for corrosion resistance and easy cleaning.
Modular frame permits side‑by‑side or stacked installation to fit limited floor space.
Tool‑free quick‑change baskets allow rapid conversion between different egg sizes (small, medium, large).
Integrated photo‑electric sensors provide real‑time count feedback to the line PLC.

Technical Specifications

Parameter	Typical Value
Egg capacity	Up to 30,000 eggs/hour (adjustable)
Power supply	220‑240 V AC, 50/60 Hz, 0.75 kW
Overall dimensions (L×W×H)	1200 mm × 800 mm × 1500 mm (customizable)
Material of contact parts	304 stainless steel, food‑grade silicone belts
Control interface	PLC‑ready, optional touch‑panel HMI
Noise level	≤ 68 dB(A) at full speed

Applications

In commercial egg‑processing plants, the in‑feed system positions eggs precisely before washing, cracking, or liquid‑egg extraction, ensuring that each egg is presented with the blunt end downstream to reduce shell breakage.

Hatcheries use the module to feed incubators with a steady stream of fertile eggs, where consistent orientation improves hatch rates and reduces labor‑induced stress on the embryos.

Food‑service operators that produce pre‑peeled hard‑boiled eggs rely on the system to maintain a uniform feed rate to peeling lines, which helps control water‑temperature fluctuations and yield consistency.

Customization Options

Lane width adjustable from 30 mm to 50 mm to accommodate quail, chicken, or duck eggs.
Speed range configurable from 500 to 30,000 eggs/hour via variable‑frequency drive.
Sensor choice: photo‑electric, ultrasonic, or capacitive based on product line environment.
Mounting configurations: floor‑standing, overhead‑suspended, or skid‑mounted for mobile units.
Integration interfaces: discrete I/O, Ethernet/IP, or Modbus TCP for PLC communication.

Quality Assurance

All contact surfaces are fabricated from ASTM‑A240 304 stainless steel and undergo passivation to meet FDA 21 CFR 174.5 requirements for food‑zone equipment. Welds are inspected using dye‑penetrant testing, and each unit receives a functional test cycle of 100,000 egg‑simulations before shipment.

Documentation includes material certificates, CE conformity declarations, and optional IP65 rating for wash‑down environments. The design avoids crevices that could harbor contaminants, supporting easy CIP (clean‑in‑place) procedures.

Frequently Asked Questions

Can the in‑feed speed be adjusted without stopping the line? Yes, the variable‑frequency drive allows on‑the‑fly speed changes via the PLC or HMI.
What information is required for a quotation? Desired egg size range, target feed rate, line speed, available power voltage, and any specific mounting constraints.
Are spare parts readily available? Critical wear items such as belts, sensors, and drive couplings are stocked and can be shipped within 5‑7 business days.
How is the system protected against water ingress? The unit features sealed motor housings and optional IP65‑rated enclosures for high‑humidity wash‑down areas.
